Ag panel and R panel look almost the same from the ground: both are exposed-fastener steel panels with ribs running up the slope, screwed through the face. The difference is in the rib shape, the grade of the panel, and where each one earns its place. The honest answer to ag panel vs R panel is that they overlap a lot, and for a barn or shed either will do the job. Where it matters is on a commercial wall or a home, and that’s where the choice gets easier once you know what separates them.

Here’s a plain-English rundown of both panels and how to pick between them.

What each panel is

Ag panel

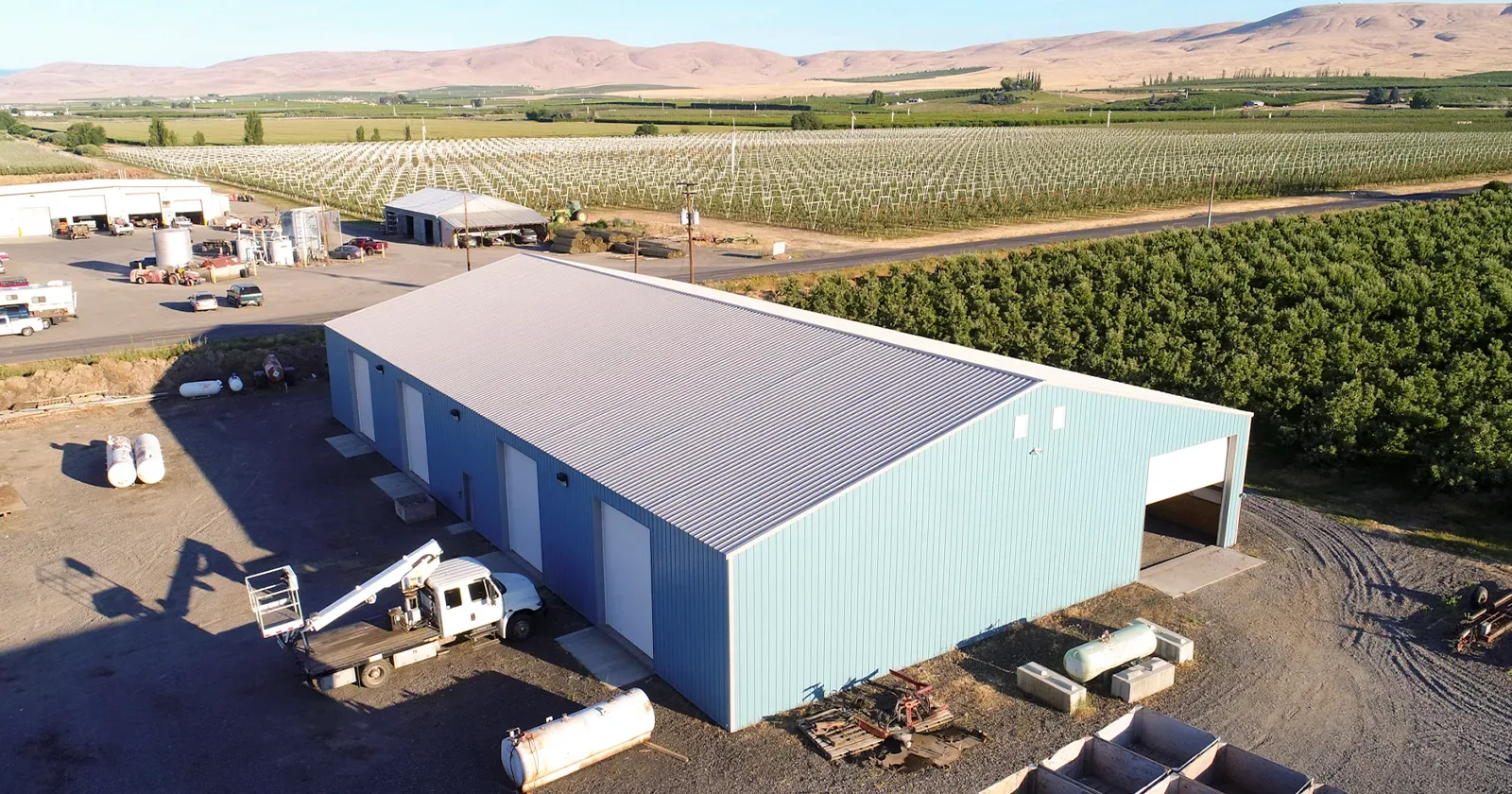

“Ag” is short for agricultural. It’s the workhorse exposed-fastener panel built for barns, sheds, pole buildings, and fences. The ribs are usually lower and spaced for economy, and the panel is made to cover a lot of area cheaply and take weather without fuss. If you’ve seen a metal barn roof, you’ve seen ag panel. Ours is covered in more depth on the ag panel page.

R panel

R panel (and the closely related PBR panel) is a heavier-duty exposed-fastener profile aimed at commercial and industrial buildings. The rib is taller and the panel is engineered with a purlin-bearing leg that makes for a stronger, cleaner side lap. It costs a little more, and it’s the panel you spec when the building matters structurally or has to look sharp.

The real differences

Rib profile

Ag panel ribs tend to be lower and more closely spaced. R panel ribs are taller and spaced wider, which stiffens the panel and lets it span a bit farther between supports. That taller rib is also why R panel sheds water and looks crisper on a tall wall.

Grade and intended use

Ag panel is the value choice for farm and outbuilding work. R panel is the commercial-grade choice. Neither is “better” in a vacuum. They’re built to different jobs, and the price difference reflects the extra steel and engineering in the R panel.

Side lap and fastening

The PBR version of R panel has that purlin-bearing leg at the overlap, which gives a tighter, more weather-resistant side lap than a typical ag panel. On a big commercial roof that detail adds up. Both panels are exposed-fastener systems, so the screws and washers still do the sealing, and both live or die on the right fasteners installed correctly.

Which one should you buy?

Match the panel to the building. Here’s the short version.

• Barn, shed, pole building, or fence: ag panel. It’s built for exactly this and it’s the better value.
• Commercial or industrial building: R panel or PBR. The taller rib and stronger side lap are worth it where the structure and the look matter.
• Home, shop, or barndominium: either can work. R panel reads a touch more finished; ag panel saves money. If you want a hidden-fastener look instead, that’s a different system, covered in our standing seam vs exposed fastener guide.

Both come in a wide range of colors and gauges, so once you’ve settled the profile you can still tune the gauge to the job. 26 gauge is the popular pick; 24 gauge gives the best strength-to-cost balance on a bigger span.

FAQ

Are ag panel and R panel interchangeable?

On a simple outbuilding, mostly yes. On a commercial roof or where the engineer specs R panel for its span and strength, no. Don’t swap an ag panel in where R panel was called out without checking the spans.

Is PBR panel the same as R panel?

PBR stands for “purlin-bearing R panel.” It’s R panel with an added bearing leg at the overlap for a stronger, tighter side lap. Same family, slightly upgraded detail. Most commercial jobs today use PBR.

Which lasts longer?

Lifespan is driven by the coating, the gauge, and the install, not by whether it’s ag or R panel. A well-installed panel of either type in a quality paint system lasts for decades. See our take on choosing steel roof panels for how those factors stack up.

Bottom line

Ag panel vs R panel comes down to the job. Ag panel is the value workhorse for barns, sheds, and pole buildings. R panel and PBR are the commercial-grade upgrade with a taller rib and a tighter side lap. Both are honest, long-lasting exposed-fastener panels. If you tell us what you’re building, we’ll point you at the right profile and gauge. Give us a call or request free samples.
