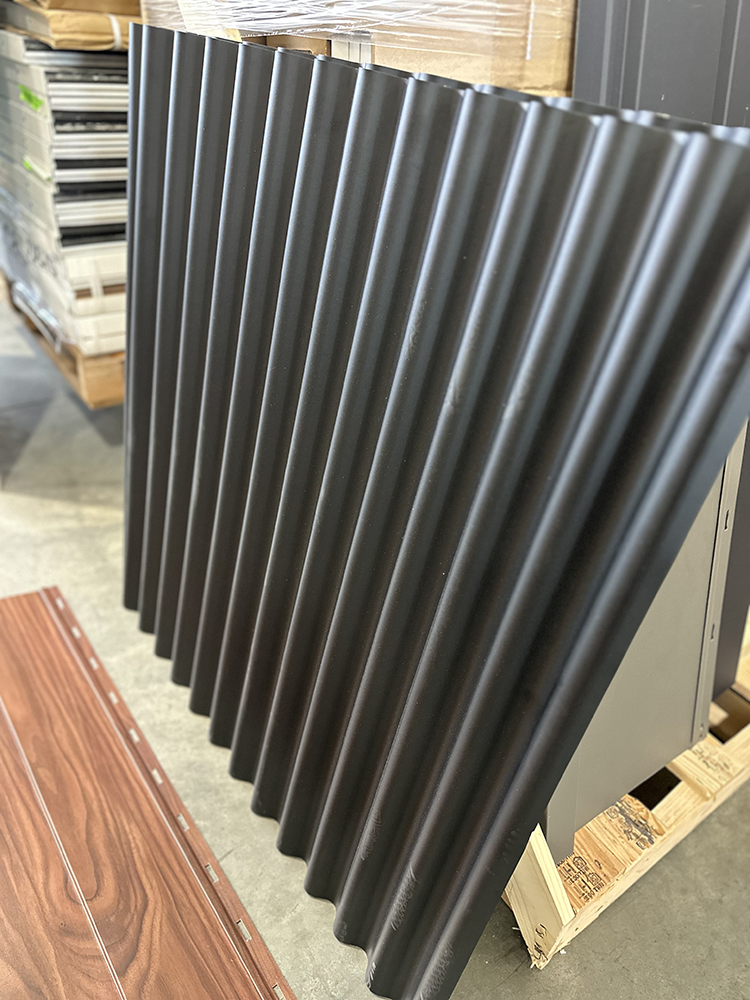

Metal roofing gauge is one of those specs that sounds technical but is actually pretty simple once you understand what the number means. The gauge of a steel panel determines its thickness, and thickness directly affects strength, dent resistance, longevity, and cost. Choosing the wrong gauge is one of the most common mistakes buyers make, either overspending on a premium gauge for a basic agricultural shed or trying to save money with a light gauge panel on a project that needs something more substantial.

This guide explains how the gauge system works, what each gauge actually means in practice, and how to match the right gauge to your project.

How the Gauge Numbering System Works

Steel gauge numbers work counterintuitively: lower gauge numbers mean thicker, heavier steel. So 22 gauge is thicker and heavier than 26 gauge, and 29 gauge is the thinnest in the range Metal America carries. Think of it as an older measurement system inherited from the wire and sheet metal industries, where gauge numbers originally tracked how many times a piece of metal was drawn down to reduce its thickness.

In practical terms, when someone says they want a “heavier” panel, they mean a lower gauge number.

Gauge Thickness Reference

22 Gauge: Heavy-Duty Commercial and Mechanically Seamed Applications

22 gauge is the thickest steel panel in Metal America’s lineup and the specification of choice for mechanically seamed standing seam systems on commercial and industrial applications. At 0.030″ thick, it provides substantial structural rigidity, excellent resistance to oil-canning on wide panel spans, and the highest dent and impact resistance in the range.

You will typically see 22 gauge specified on large commercial buildings, wide-span industrial roofs, and projects where the panel itself needs to contribute to the structural performance of the roof system rather than just covering it.

22 gauge is not commonly used on residential or agricultural projects because the performance advantage does not justify the cost premium for those applications.

24 Gauge: The High-Performance Standard for Standing Seam

24 gauge is the most common specification for standing seam metal roofing on residential, barndominium, and commercial building projects. At 0.024″ thick, it offers a meaningful step up in strength and dent resistance over 26 gauge while staying within a reasonable cost range for most project budgets.

For standing seam systems specifically, 24 gauge is the recommended gauge whenever long-term performance is the priority. The additional thickness reduces oil-canning on longer panel runs, handles hail and impact better than 26 gauge, and holds up to Pacific Northwest snow loads more reliably over decades of service.

If you are building a custom home, a barndominium, or a commercial building and you are using standing seam, 24 gauge is generally the right call. It is what Metal America recommends for QuickLoc and snap lock systems on projects where the roof is expected to perform for 40 to 50-plus years without significant maintenance. For a full discussion of standing seam systems and where they belong, see our article on Standing Seam vs. Exposed Fastener Metal Roofing.

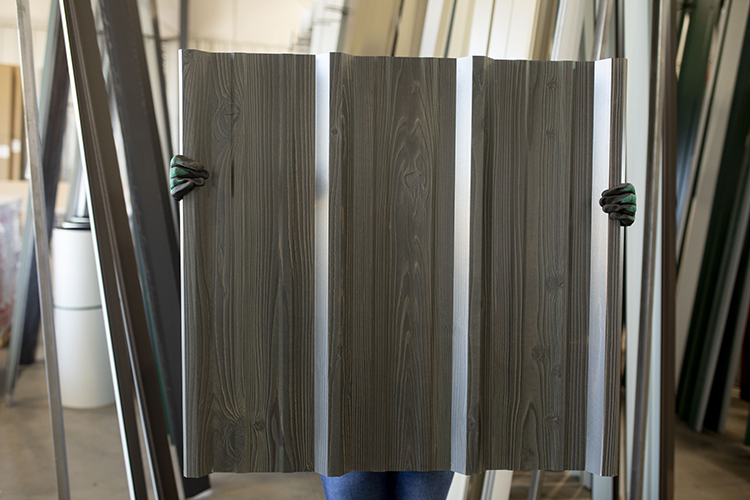

26 Gauge: The Most Versatile and Widely Used Gauge

26 gauge is the most popular gauge across the metal roofing industry and for good reason. At 0.018″ thick, it is strong enough for a wide range of residential, commercial, and agricultural applications while hitting a price point that works for most project budgets. It is the default gauge for most exposed fastener panels and is also available in standing seam systems for projects where the budget does not support 24 gauge.

For exposed fastener systems like PBR, Tuff Rib, and 7/8″ corrugated, 26 gauge is the recommended choice for any building that will be in active use, exposed to significant weather, or expected to last more than 20 to 25 years without re-roofing. It offers meaningfully better dent resistance than 29 gauge and is not significantly more expensive on a typical project.

On residential roofs where standing seam is specified and budget is the primary constraint, 26 gauge is a reasonable choice. Just understand that you are giving up some of the long-term performance advantages that make standing seam worth the investment in the first place.

29 Gauge: Budget Agricultural and Light-Duty Applications

29 gauge is the thinnest and lightest panel in the lineup at 0.014″ thick. It is the most affordable option per square foot and is commonly used on agricultural storage buildings, hay barns, livestock shelters, simple sheds, and other structures where the primary goal is weather protection at the lowest possible cost.

29 gauge is a legitimate choice for the right application. A hay barn does not need 24 gauge steel. An equipment storage shed that is rarely touched by anything heavier than rain does not need 26 gauge. For those projects, 29 gauge performs well and keeps the project budget where it needs to be.

Where 29 gauge runs into trouble is when it gets used on applications that are too demanding for it. Vehicles brushing against walls, ladders leaned against panels, heavy hail, or even routine maintenance traffic on the roof will dent and damage 29 gauge in ways that 26 gauge would shrug off. If the building is going to see active use, step up to 26 gauge.

24 Gauge vs. 26 Gauge: The Decision Most People Actually Face

The question Metal America gets most often from contractors and homeowners is whether to go 24 or 26 gauge for a standing seam residential or barndominium project. Here is the honest breakdown.

For most homeowners and contractors building with standing seam, the extra cost of 24 gauge is worth it. You are already investing in the premium panel system; a gauge downgrade to save a modest amount per square foot can meaningfully reduce the long-term performance advantage you paid for with standing seam in the first place.

Which Gauge Does Metal America Carry by Panel Type?

Frequently Asked Questions About Metal Roofing Gauge

Ready to Order?

Metal America fabricates panels to your project’s custom lengths from our facility in Post Falls, Idaho. We supply panels in all four gauges across our full panel lineup, with the complete trim package and WeatherXL color options to match. Browse the full panel overview or contact us directly to discuss gauge selection for your specific project.
